24×10 Wood Return Air Filter Grille

From: $300.00


Fully assembled Wood Return Air Filter Grilles are constructed of furniture grade pine and are ready for your favorite paint or stain. The door and frame feature sturdy double dowel construction and each louver is mechanically reinforced for extra long life and rattle free performance. Wide grilles are reinforced with an inlaid center support on the back of the grille.

Changing filters is as easy as opening a cabinet door. Reversible hinges are completely concealed eliminating the need to match the hardware color. Magnetic catches recessed into the door ensure a secure closing suitable for mounting on the wall or ceiling. The galvanized filter housing is pre-installed behind the frame for easy installation.

In addition to the Standard Square Edge, you can select from the Quarter Round Edge Option, the Ogee Edge Option or the Ogee Applique Option. Wood Return Air Filter Grilles are designed for walls or ceilings and are not suitable for floor use. Grilles from WoodAirGrille.com typically ship within 10 days or less and backed with our 100% Satisfaction Guarantee.

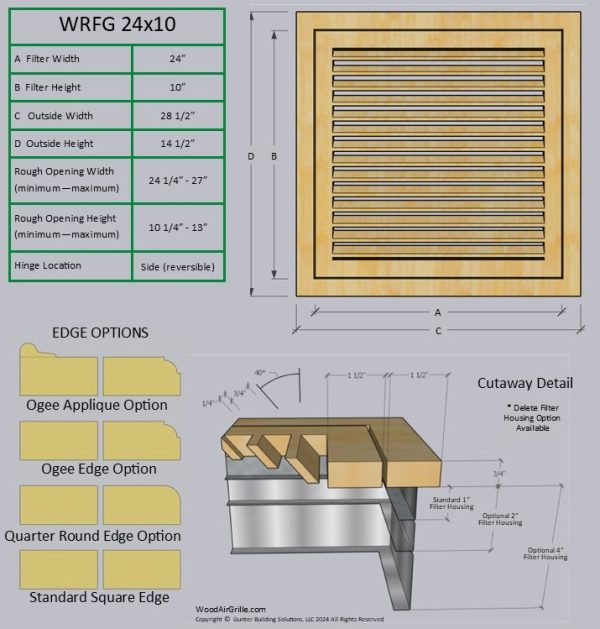

Filter Width 24”
Filter Height 10”
Outside Width 28 ½”
Outside Height 14 ½”
Rough Opening Width 24 ¼” – 27”
Rough Opening Height 10 ¼” – 13”

Additional information

Weight 8 lbs
Dimensions 30 × 5 × 24 in

Standard Square Edge, Quarter Round Option (+$15.00), Ogee Edge (+ $15.00), Ogee Applique Option (+$35.00)

Filter Housing

Standard 1" Filter Housing, 2" Filter Housing (+ $10.00), 4" Filter Housing (+ $15.00), Delete Filter Housing
