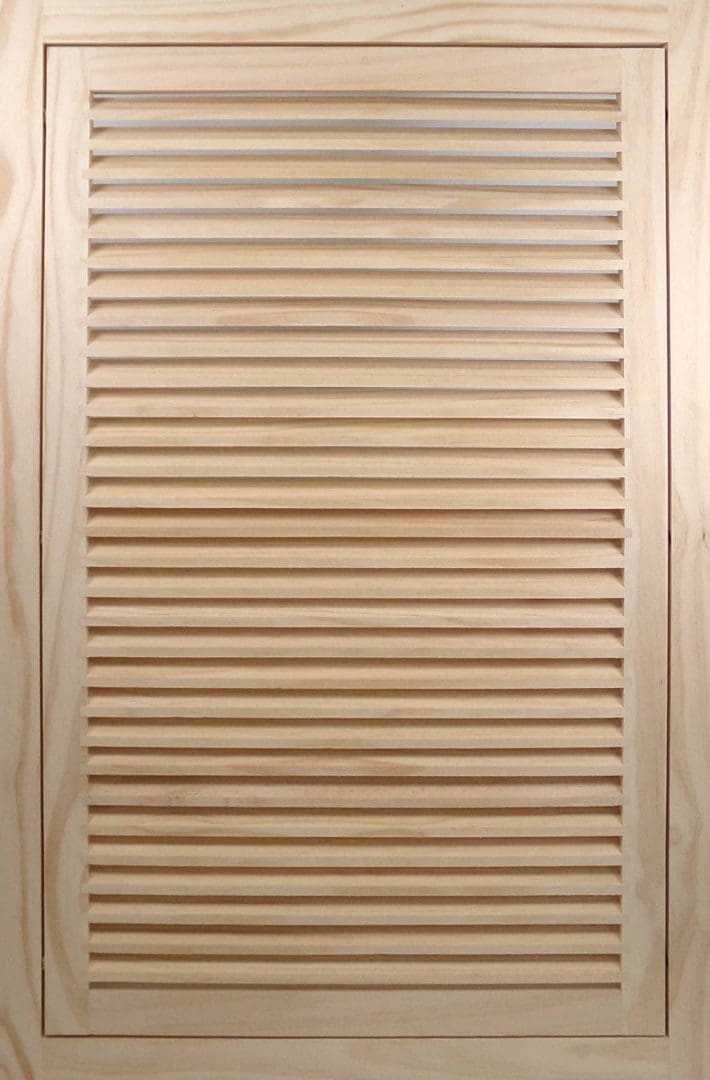

22×32 Wood Return Air Filter Grille

From: $360.00

SKU: WRFG-2232 Categories: , Tag:
A wooden window with slats on the outside.
A wooden window with metal frame and glass
A white air vent in the middle of stairs.
A picture of the side and back sides of two different types of wood.
A picture of the side and back of two different types of wood.
A picture of different types of wood.
A picture of some wood and the words ogee applique

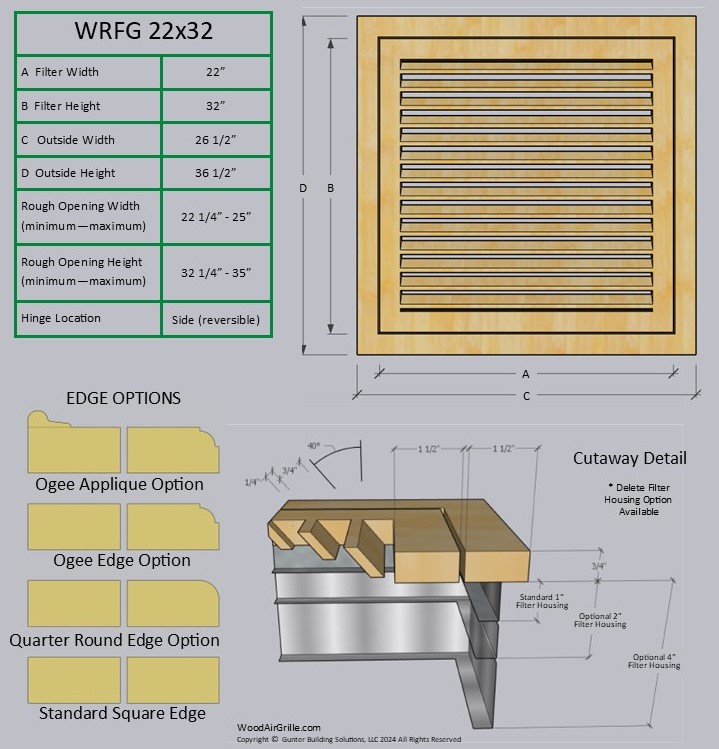

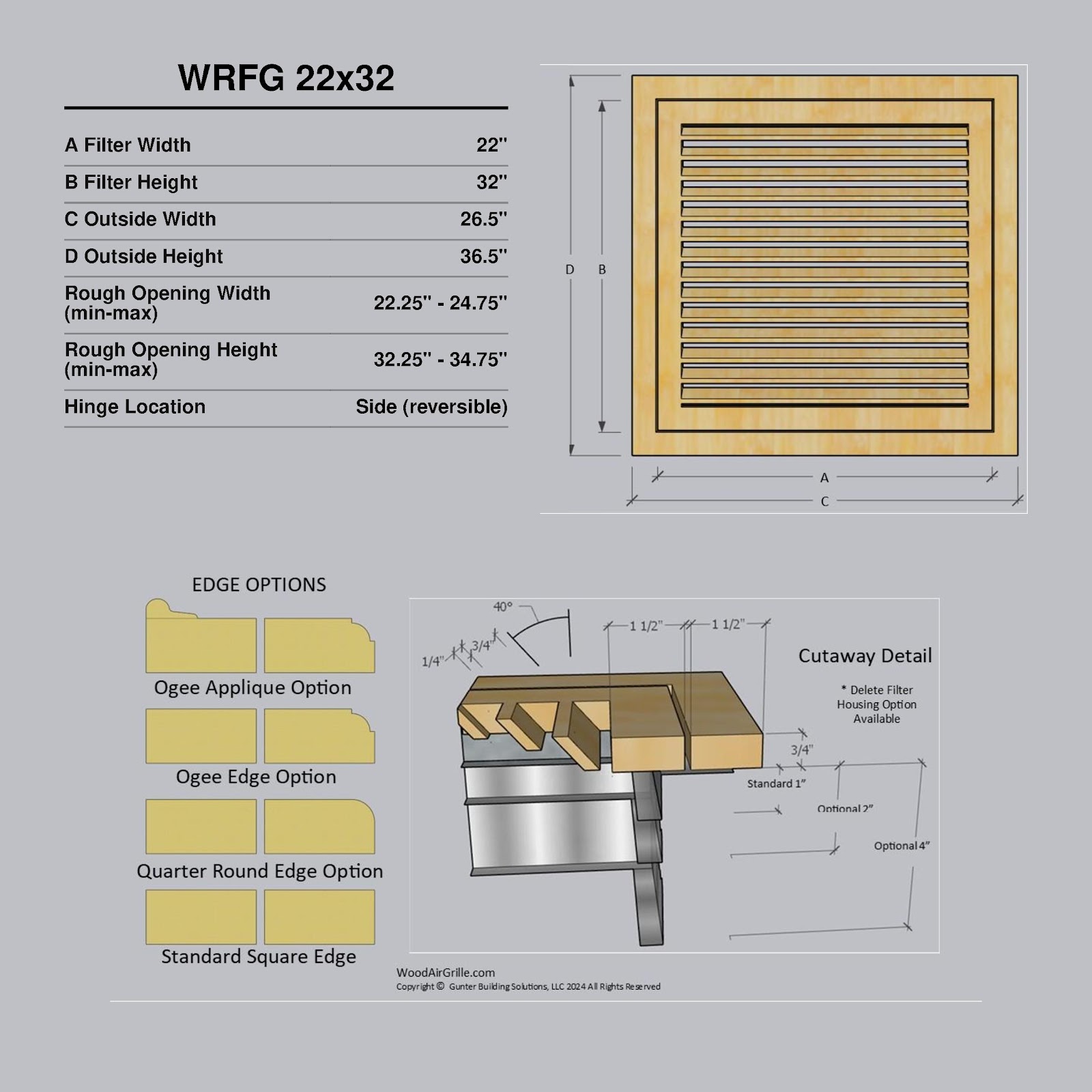

A drawing of the measurements for a window.

Description

Fully assembled Wood Return Air Filter Grilles are constructed of furniture grade pine and are ready for your favorite paint or stain. The door and frame feature sturdy double dowel construction and each louver is mechanically reinforced for extra-long life and rattle free performance. Wide grilles are reinforced with an inlaid center support on the back of the grille.

Changing filters is as easy as opening a cabinet door. Reversible hinges are completely concealed eliminating the need to match the hardware color. Magnetic catches recessed into the door ensure a secure closing suitable for mounting on the wall or ceiling. The galvanized filter housing is pre-installed behind the frame for easy installation.

In addition to the Standard Square Edge, you can select from the Quarter Round Edge Option, the Ogee Edge Option or the Ogee Applique Option. Wood Return Air Filter Grilles are designed for walls or ceilings and are not suitable for floor use. Grilles from WoodAirGrille.com typically ship within 10 days or less and backed with our 100% Satisfaction Guarantee.

Filter Width  22”
Filter Height  32”
Outside Width  26 ½”
Outside Height  36 ½”
Rough Opening Width  22 ¼” – 25”
Rough Opening Height  32 ¼” – 35”

Additional information

Weight 15 lbs
Dimensions 36 × 5 × 30 in
Style

Ogee Applique Option (+$35.00), Ogee Edge (+ $15.00), Quarter Round Option (+$15.00), Standard Square Edge
Filter Housing

2" Filter Housing (+ $10.00), 4" Filter Housing (+ $15.00), Delete Filter Housing, Standard 1" Filter Housing
